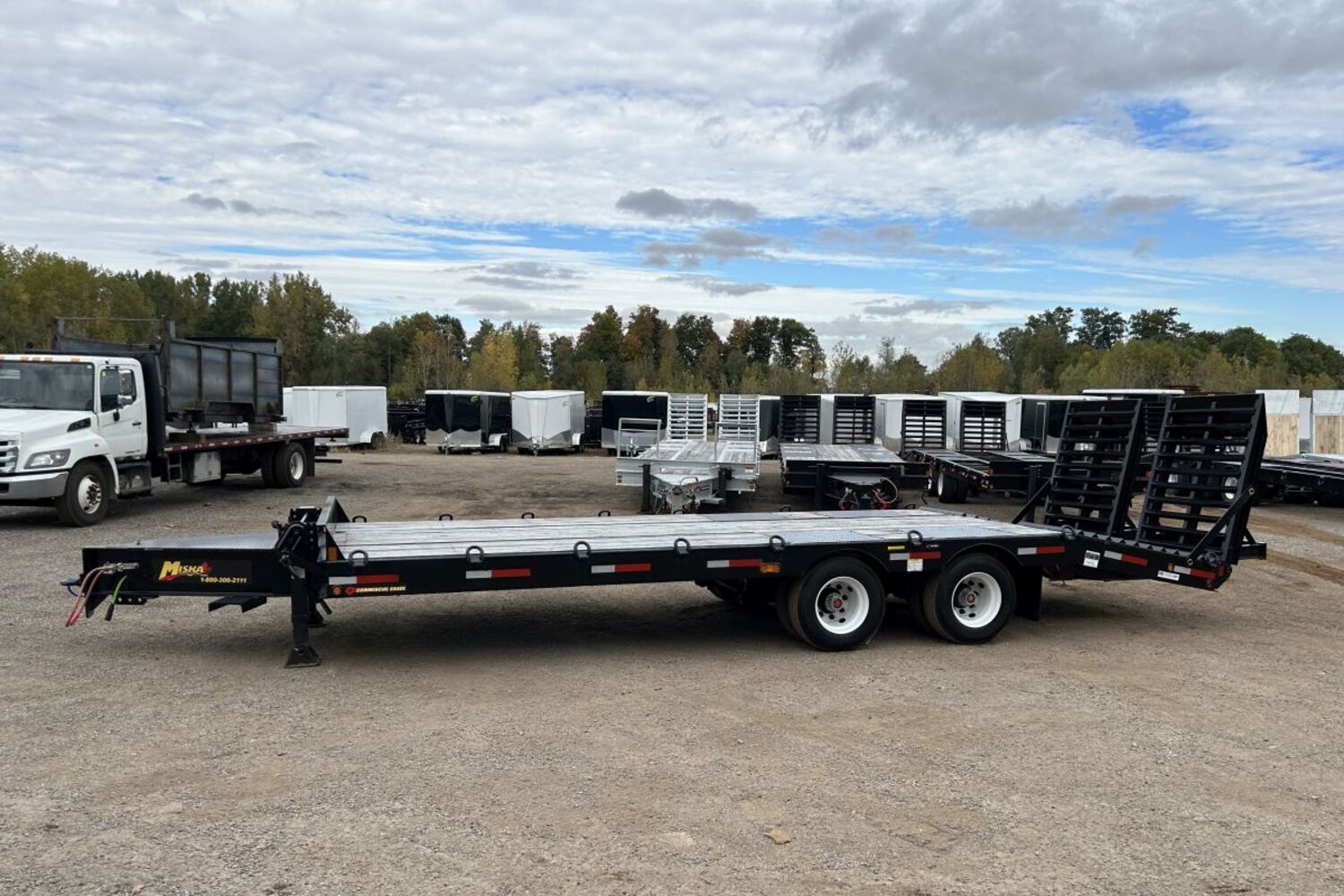

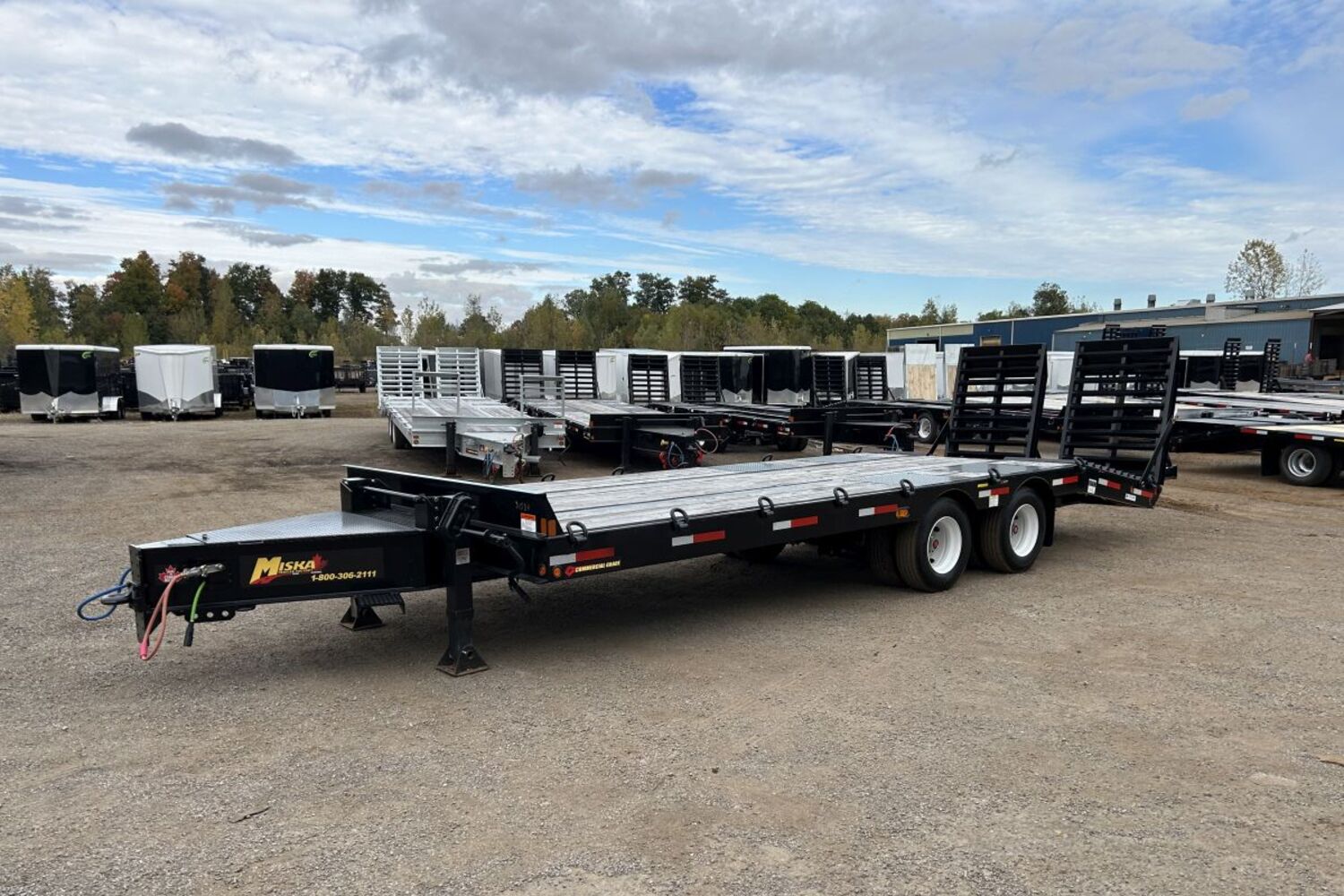

20 Ton HD Equipment Float Trailer w/ Air Brakes

LIFETIME WARRANTY* MADE IN CANADA

Float large equipment with ease - Miska's Air Brake Tag-Along Float Trailers are fully customizable to suit whatever you need to haul!

SAVE $3,400

Factory Direct Pricing From Only

$36,995

Finance from $365/bi-weekly

Competitor Dealer Retail Price: $40,395

Start Your Quote Apply for Financing
Thank you for selecting our Factory Direct 20 Ton HD Equipment Float Trailer w/ Air Brakes

Now, you have two simple options:

  1. Choose an in-stock value package below: These packages are designed to meet the needs of most of our customers.
  2. Customize Your Trailer with Additional Options: Select from a range of premium options to factory order a trailer to your exact specifications. Only pay for the features you need—without any dealer markup.

Once you've made your selection, click “Request Quote”, and one of our expert Sales Team members will reach out to you within 24 hours.

Select Your Size

Specification Details
Size 102'' x 20' + 5' beavertail
GVWR 40000 lbs (18144 kg)
Empty Weight 9860 lbs (4472 kg)
Payload 30140 lbs (13671 kg)
Width 102 in (8.5 ft)
Length 25 ft
Deck Height 37 in (3.08 ft)
Warranty Industry Leading Lifetime Warranty*
Electrical Plug 7 Pin Round
Jack Holland Dual 25K
Safety Chains 1/2" Safety Chains, Grade 70

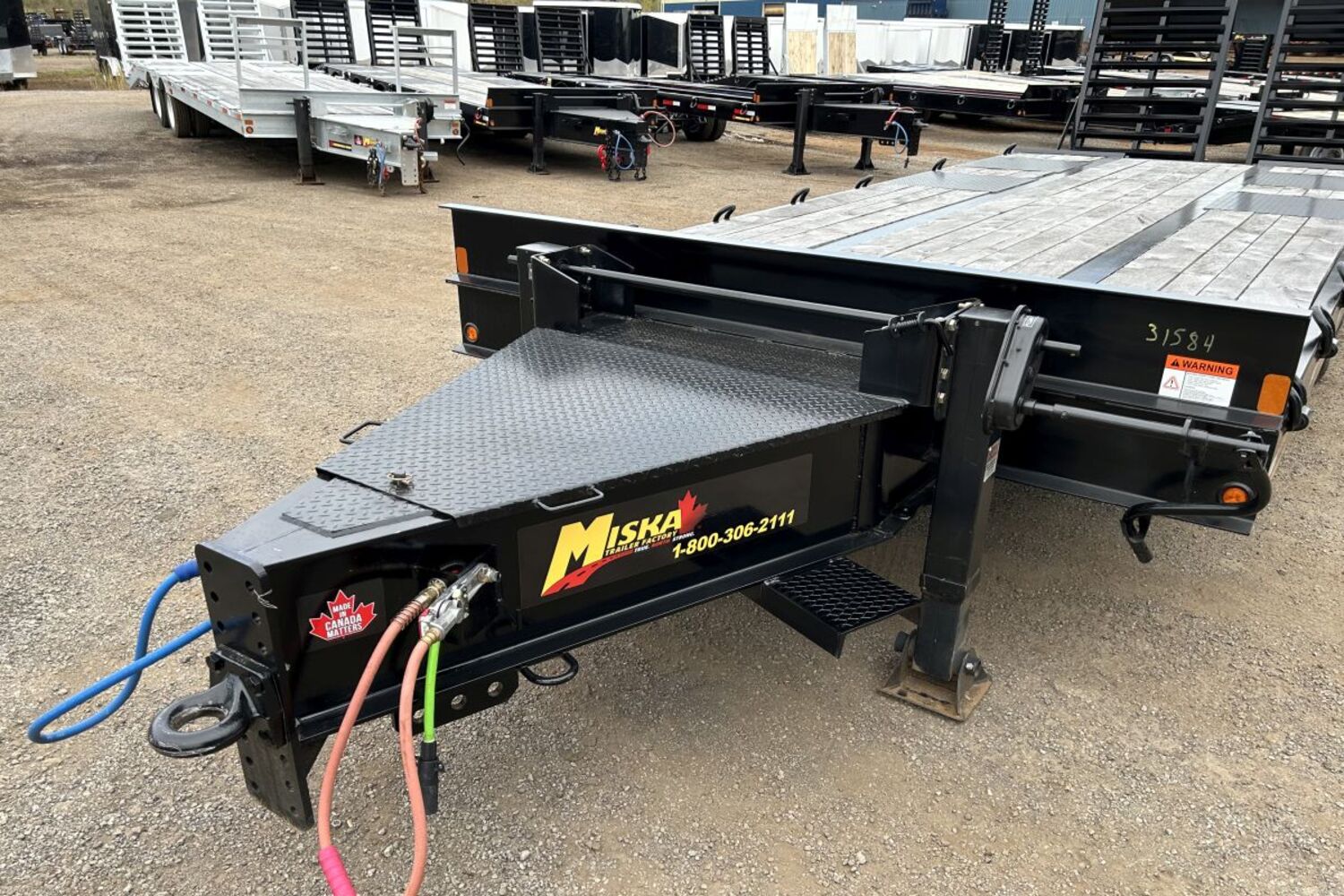

Coupler 3" Adjustable 60K Pintle
Axle (2) 20,000 Oil Bath Axles
Brakes 2 Air axle brakes-(1 is ABS axle)
Suspension Spring w 49" Spread
Ramp Ladder
Frame 14" Beam (26#)
Cross Members every 16'' Pierced Frame

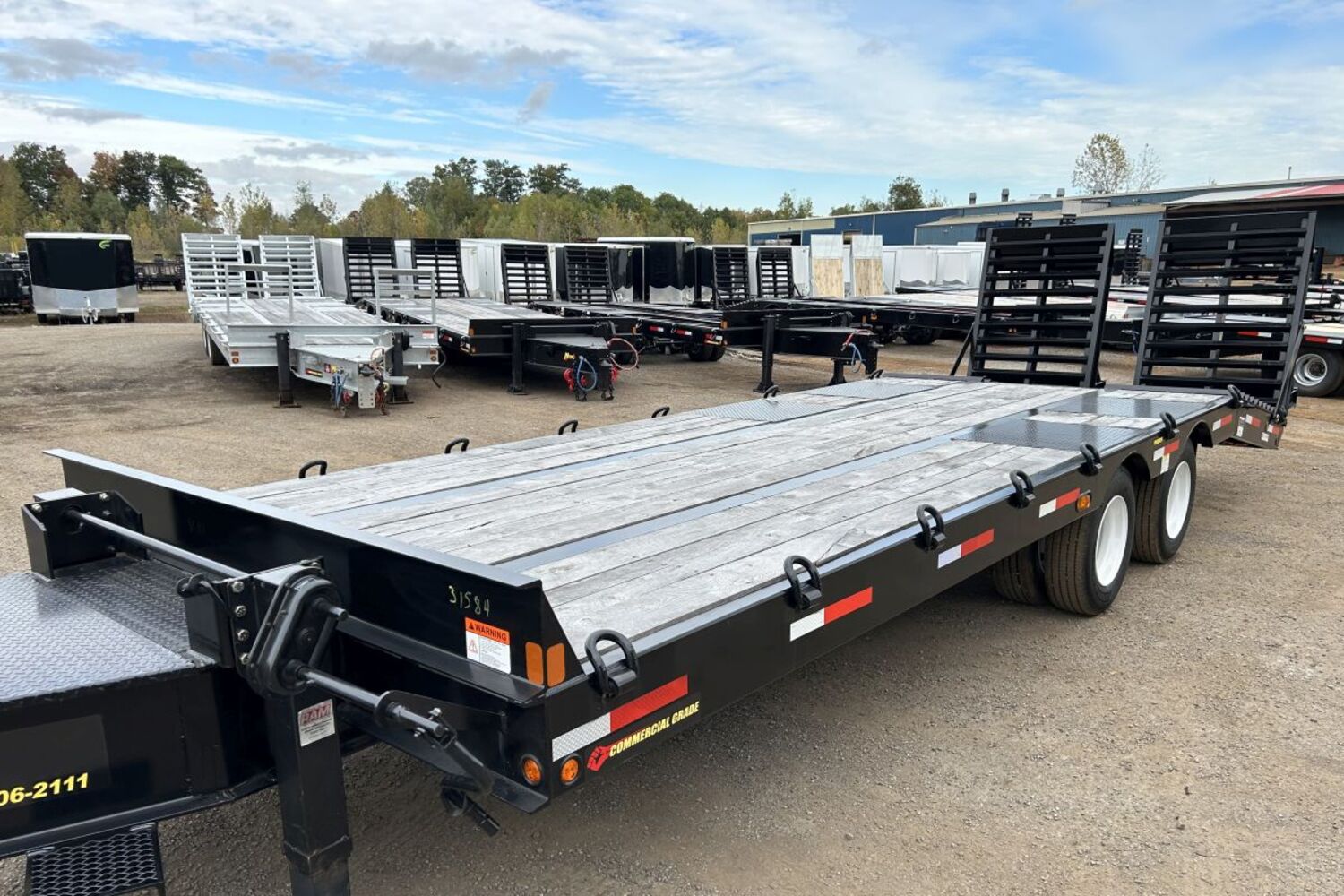

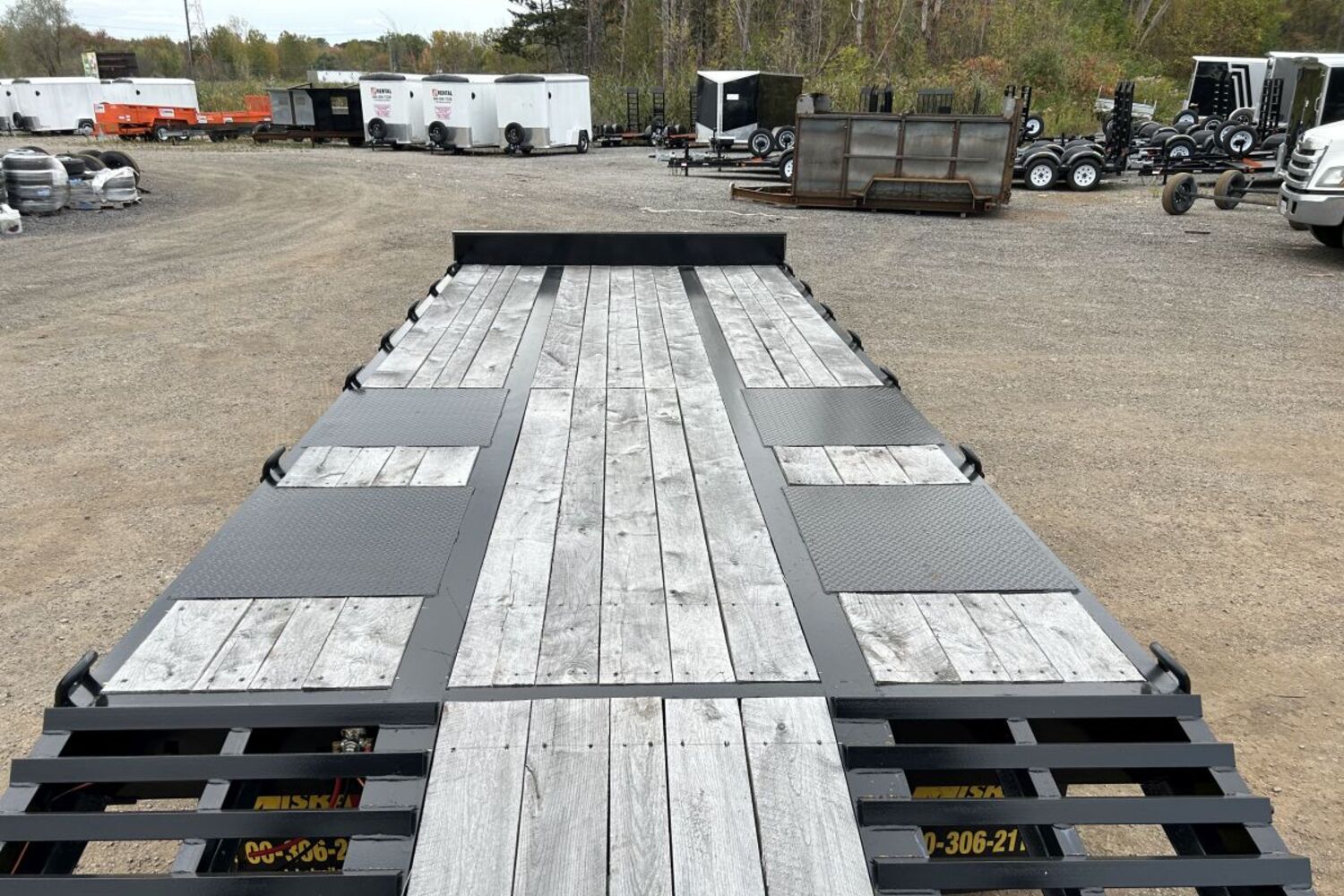

Floor 2" Hardwood

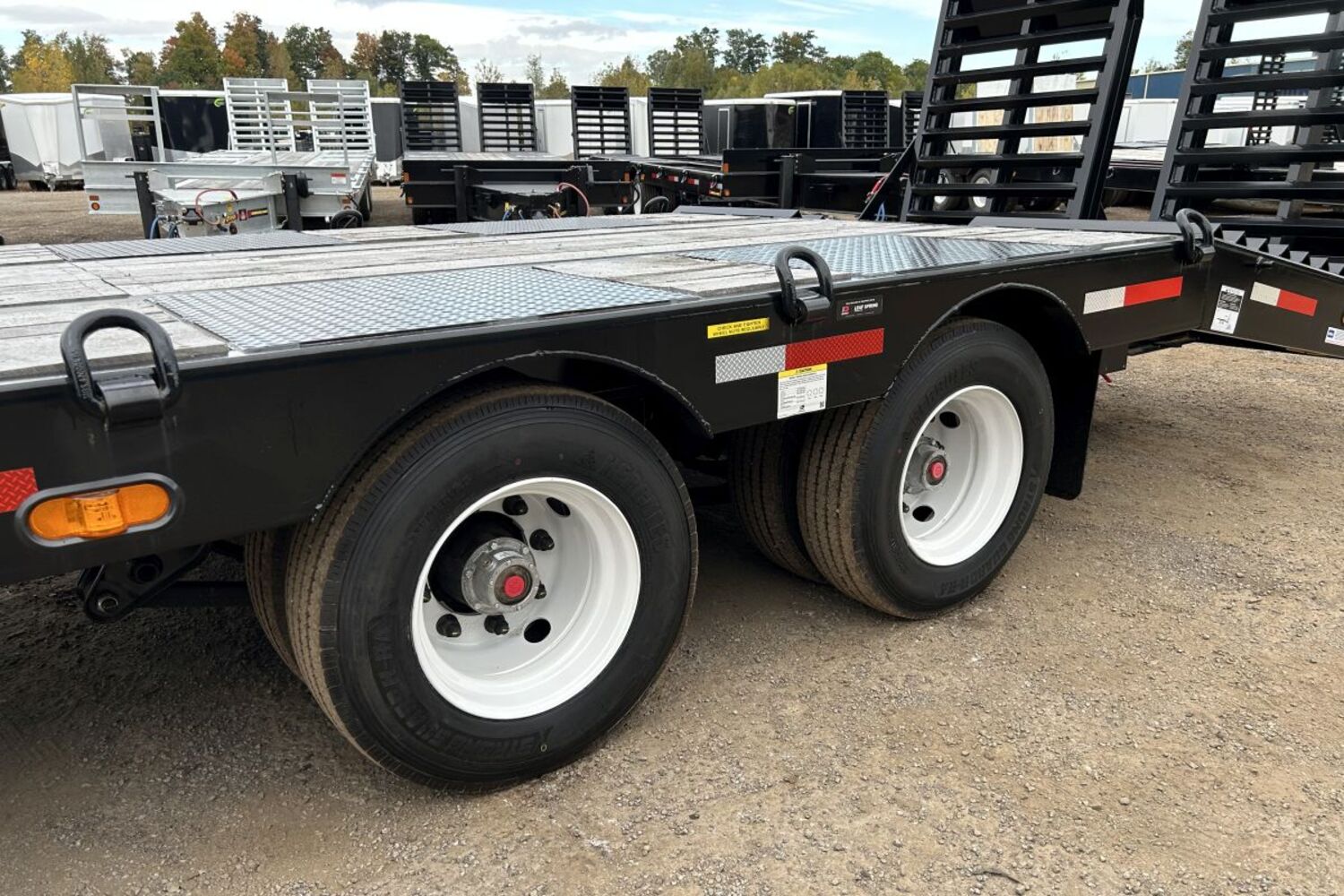

Tires ST235/75R17.5 on Dual Wheel
Tie Downs 16-1'' d rings
Toolbox optional
Lights LED Rubber Mounted Stop, Turn & Clearance

20' + 5' Excavator Model

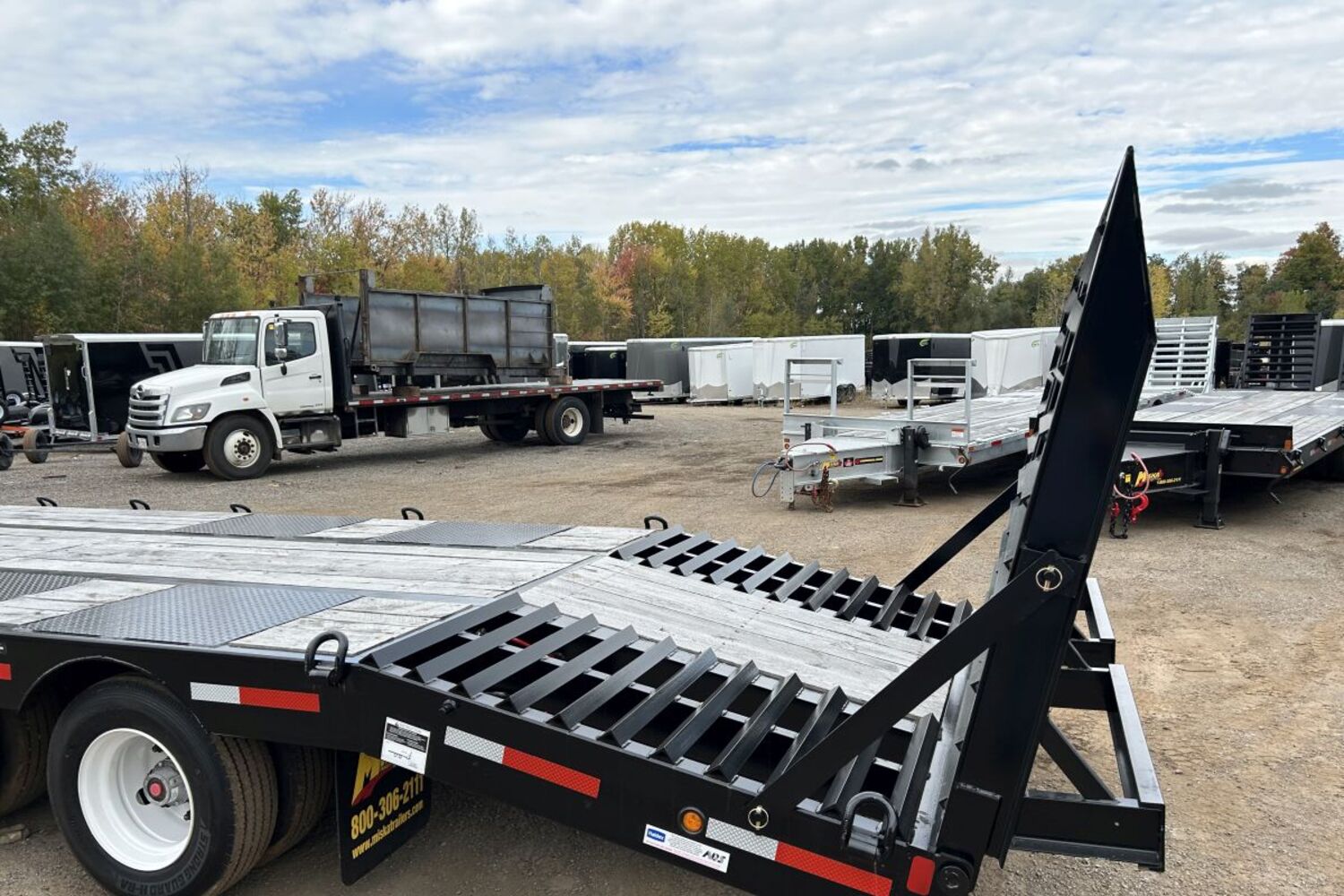

Bundle and Save! The Excavator Package adds an In-Tongue Toolbox and Air Ramps w/ Self-Cleaning Beavertail to our 20 Ton Air Float Trailer

  • 2" x 8" Rough Oak Deck
  • Crash Bar
  • LED Lights
  • Sealed Wiring Harness

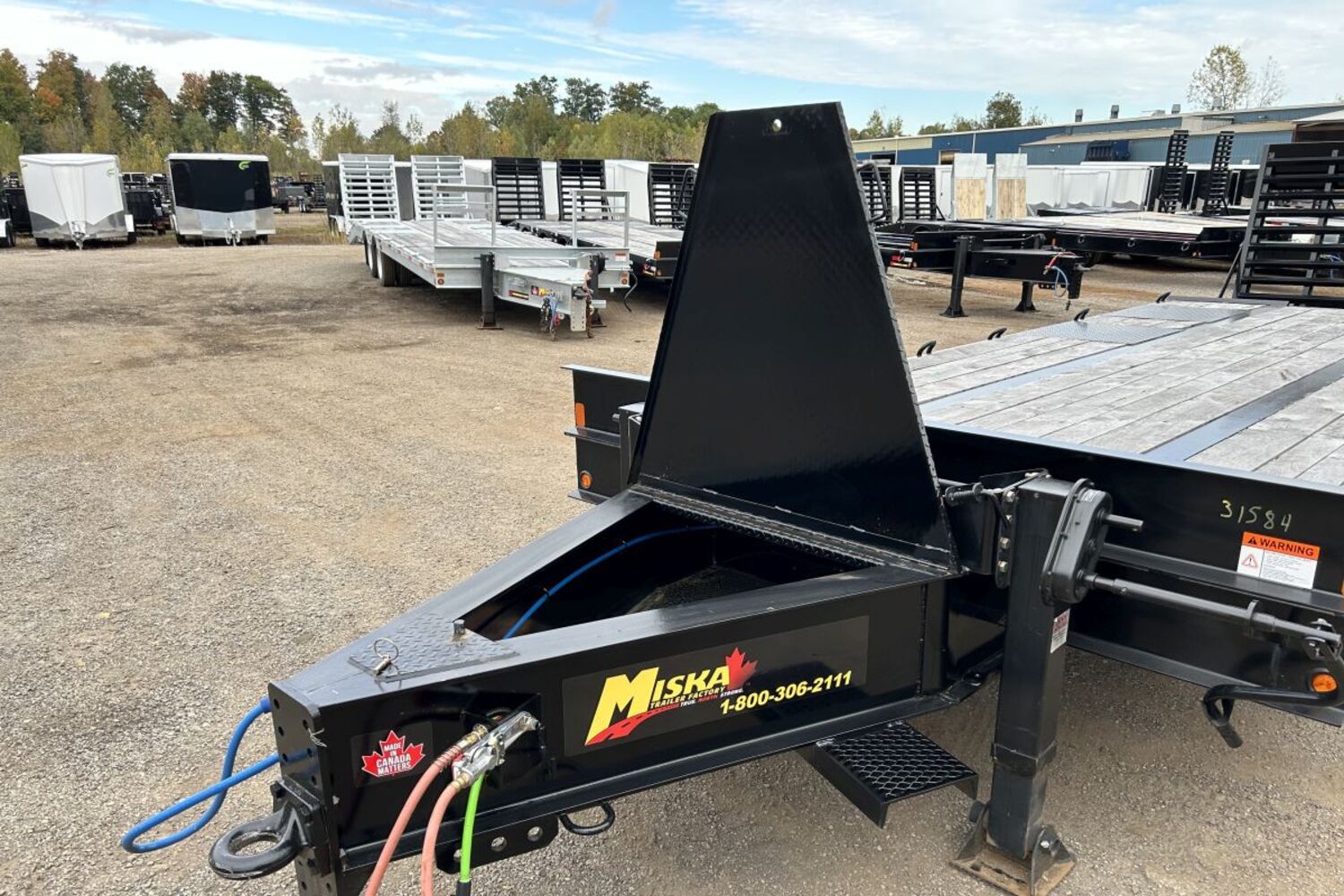

  • In-Tongue Toolbox
  • D-Ring Tie Downs

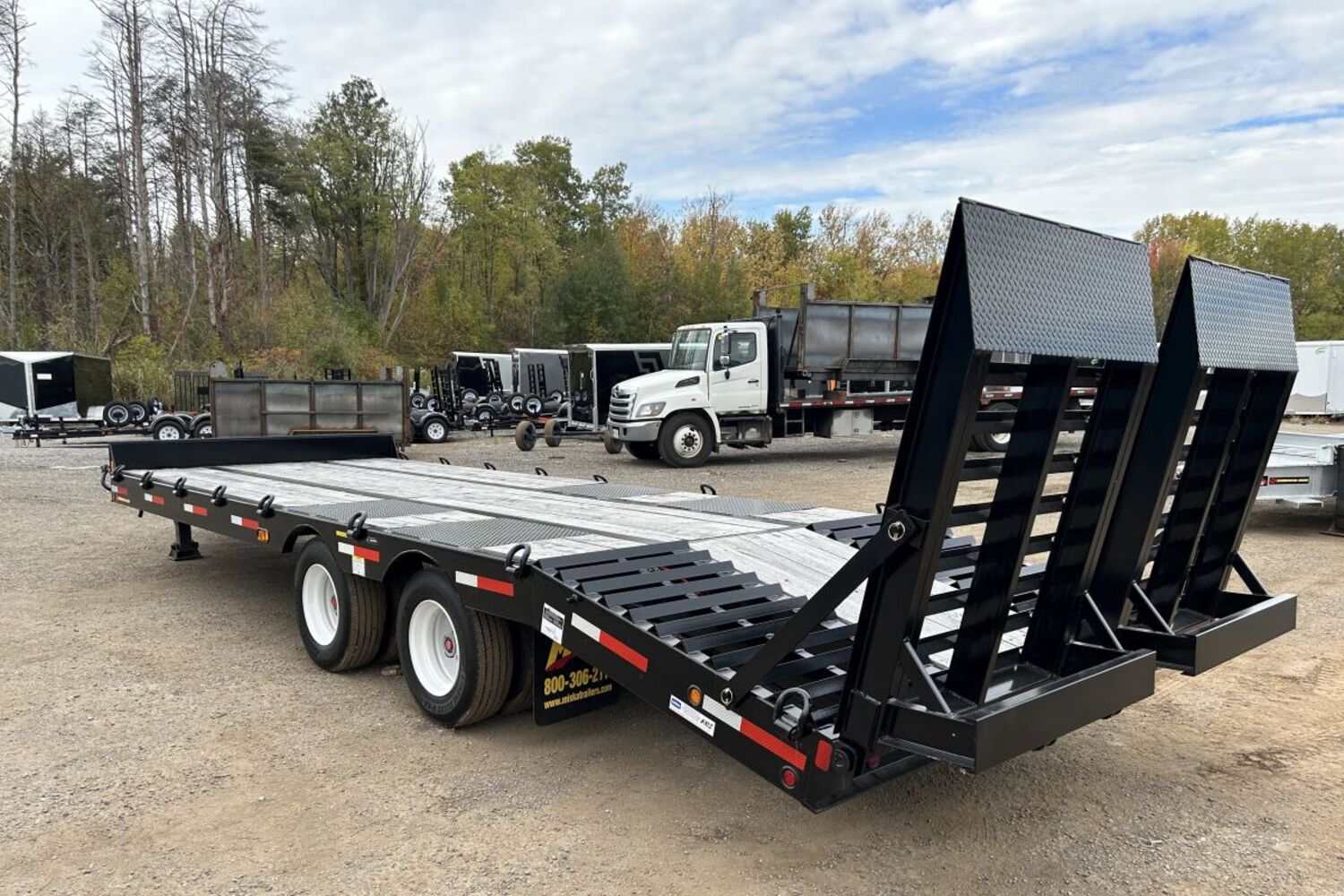

  • Air Ramps w/ Self Cleaning Beavertail

Competitor Dealer Retail Price: $44,195

Miska Factory Direct:

$40,495

Finance From: $400/bi-weekly

24' + 6' Paver Model

Bundle and Save! The Paver Package adds an In-Tongue Toolbox and Wood Top Air Ramps & Wood Top Beavertail to our 20 Ton Air Float Trailer

  • 2" x 8" Rough Oak Deck
  • Crash Bar
  • LED Lights
  • Sealed Wiring Harness
  • In-Tongue Toolbox
  • D-Ring Tie Downs
  • 96" Wood Top Air Paver Ramps w/ Wood Top Beavertail

Competitor Dealer Retail Price: $46,395

Miska Factory Direct:

$42,495

Finance From: $419/bi-weekly

Swipe to scroll

Feature Base Model 20' + 5' Excavator Model 24' + 6' Paver Model
2" x 8" Rough Oak Deck
Crash Bar
LED Lights
Sealed Wiring Harness
In-Tongue Toolbox
D-Ring Tie Downs
Spring Assist Ramps
Air Ramps w/ Self Cleaning Beavertail
96" Wood Top Air Paver Ramps w/ Wood Top Beavertail
Competitor Dealer Retail Price $40,395 $44,195 $46,395
Miska Trailer Factory Direct Price $36,995 $40,495 $42,495
Finance From
$365 /bi-weekly
$400 /bi-weekly
$419 /bi-weekly


Swipe to scroll

Axle Type
Custom Options

For mounting sliding ratchet tie downs

Includes (4) Ratchet Binders & (4) 3/8" Chain

Includes (5) Ratchet Binders & (5) 3/8" Chain

Extra Length

Available in 1' Increments - please specify in Special Requests when submitting your quote request

Finish
Jack
Pockets
Ramp Style
Sides
Spare Tire Choice
Tires
Toolbox

*Custom colors, other than black, may incur additional production time and costs. The colors displayed below are for representation purposes and may not accurately reflect the actual color on your trailer.
