Neo NAVR 5' Wide Single Axle

The NEO NAV – where strength meets versatility! These all-aluminum enclosed cargo trailers are built for durability, lightweight towing, and full customization to suit your exact needs. Whether you're hauling tools, toys, or equipment, the NAV lineup offers a range of sizes, colors, and upgrade options to match your lifestyle. From ramp doors to premium add-ons, you can build the perfect trailer for work or play.

SAVE $702

Factory Direct Pricing From Only

$7,393

Finance from $75/bi-weekly

Competitor Dealer Retail Price: $8,095

Start Your Quote Apply for Financing

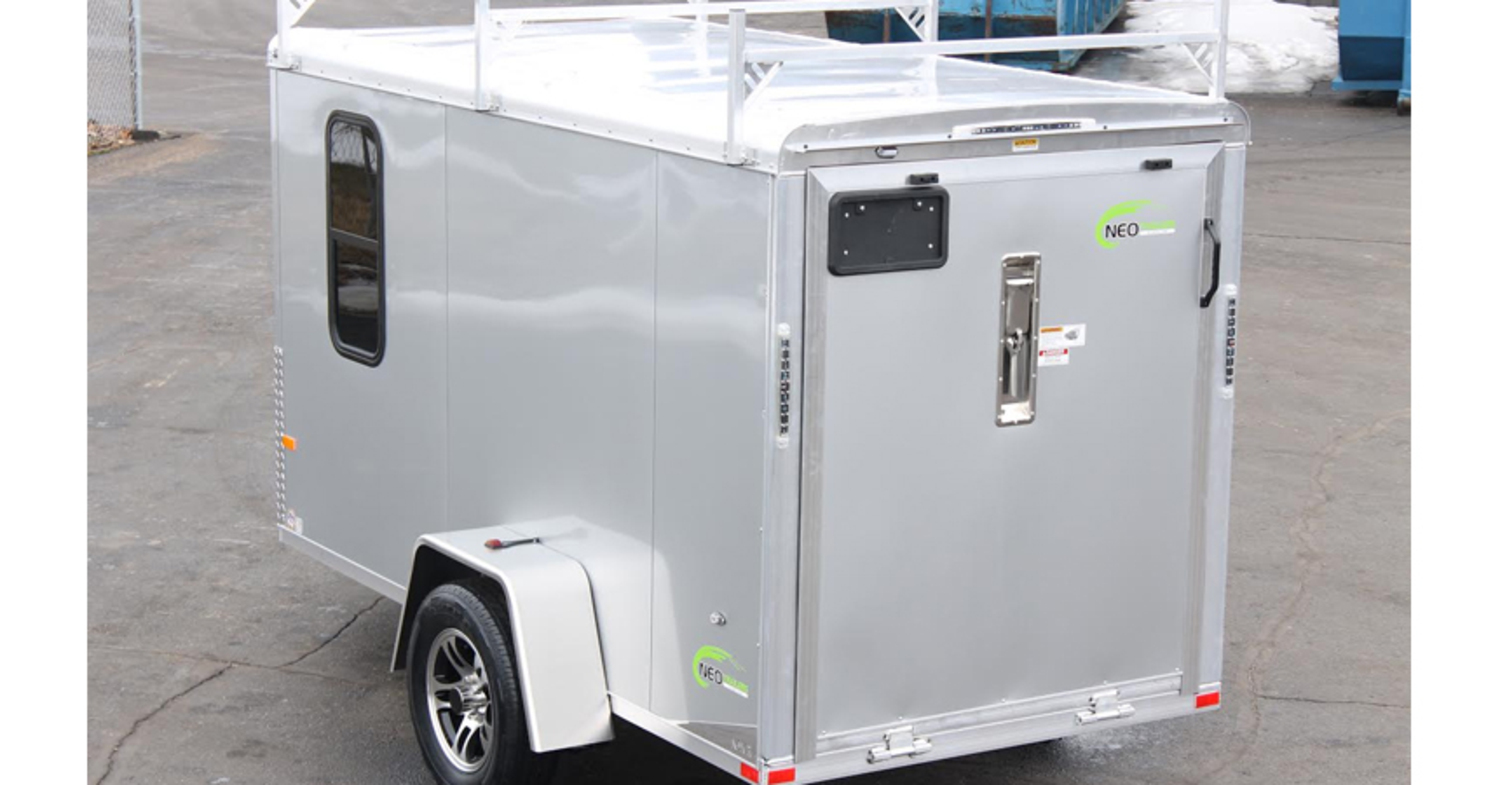

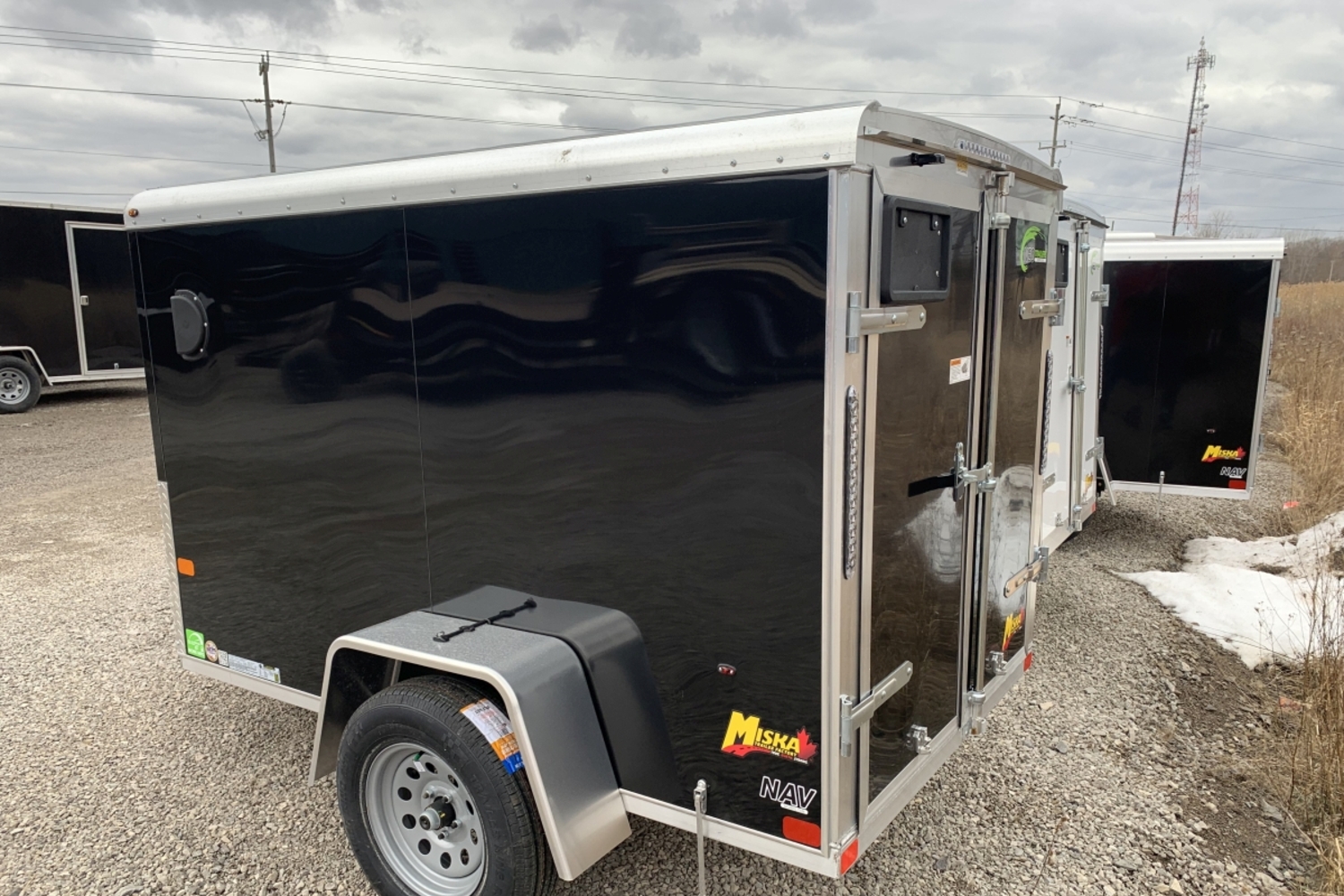

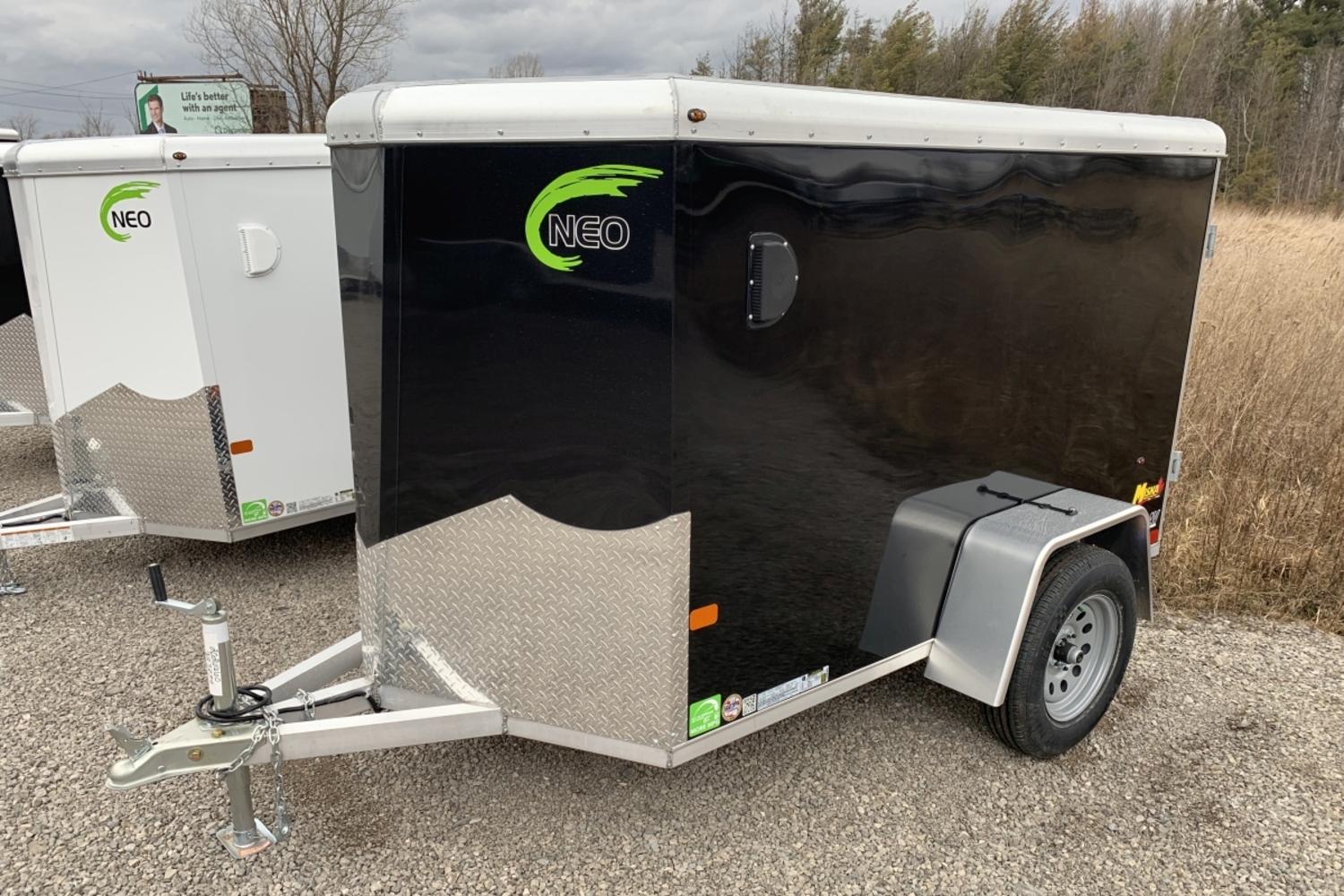

*Trailer shown may contain optional features or packages.

Thank you for selecting our Factory Direct Neo NAVR 5' Wide Single Axle

Now, you have two simple options:

  1. Choose an In-Stock Trailer: We have dozens of Enclosed Trailers in stock every day - Submit a quote request, call, or message us for current stock.
  2. Custom Build Your Trailer: Select from a range of premium options to factory order a trailer to your exact specifications. Only pay for the features you need.

Once you've made your selection, click “Request Quote”, and one of our expert Sales Team members will reach out to you within 24 hours.

Select Your Size

Specification Details
GVWR 2500 lbs (1134 kg)
Empty Weight 764 lbs (347 kg)
Payload 1736 lbs (787 kg)
Width 60 in (5 ft)
Length 8 ft
Overall Length 12' 7" w/17" Wedge
Overall Width 80"
Overall Height 77.25"
Front Slant Wedge
Interior Length 8'
Interior Width 57"
Deck Height 16 in (1.33 ft)
Rear Door Single Barn Door or Optional Ramp
Opening Width 52"
Opening Height 53.25"
Warranty 3 Years
Sidewalls Lauan Plywood
Coupler 2" A-Frame
Axle 2500 lb
Axle Type Drop Spring
Brakes Optional
Fenders Aluminum
Stoneguard 24" Aluminum Checkerplate
Side Door 24" Flushlock
Door Hardware Stainless Steel Holdbacks
Frame Integrated Triple Tube Tongue & Frame
Cross Members 24" O/C Floor, 16" O/C Wall & Roof
Exterior Screwless .030 Aluminum
Roof Round-Top Cove, Seamless Aluminum�
Floor 3/4" Exterior Grade Plywood
Stabilizer Jacks Optional
Tires ST205/75R15
Rims Silver Mod
Tie Downs Optional
Vents Flow Thru
Lights L.E.D. Stop, Turn, Tail & Marker
Dome Light LED w/ Wall Switch
Loading Light Optional

Axle Type
Brakes
Cross Member
D-Rings
Electrical Plug
Extra Height
Floor
Floor Liner
Insulated Ceiling

Must have Finished Ceiling

Interior Ceiling
Interior Wall Insulation

Requires Finished Walls

Interior Wall Liner

With 3/4" x 12" Scuff Plate

Interior Walls
Jack

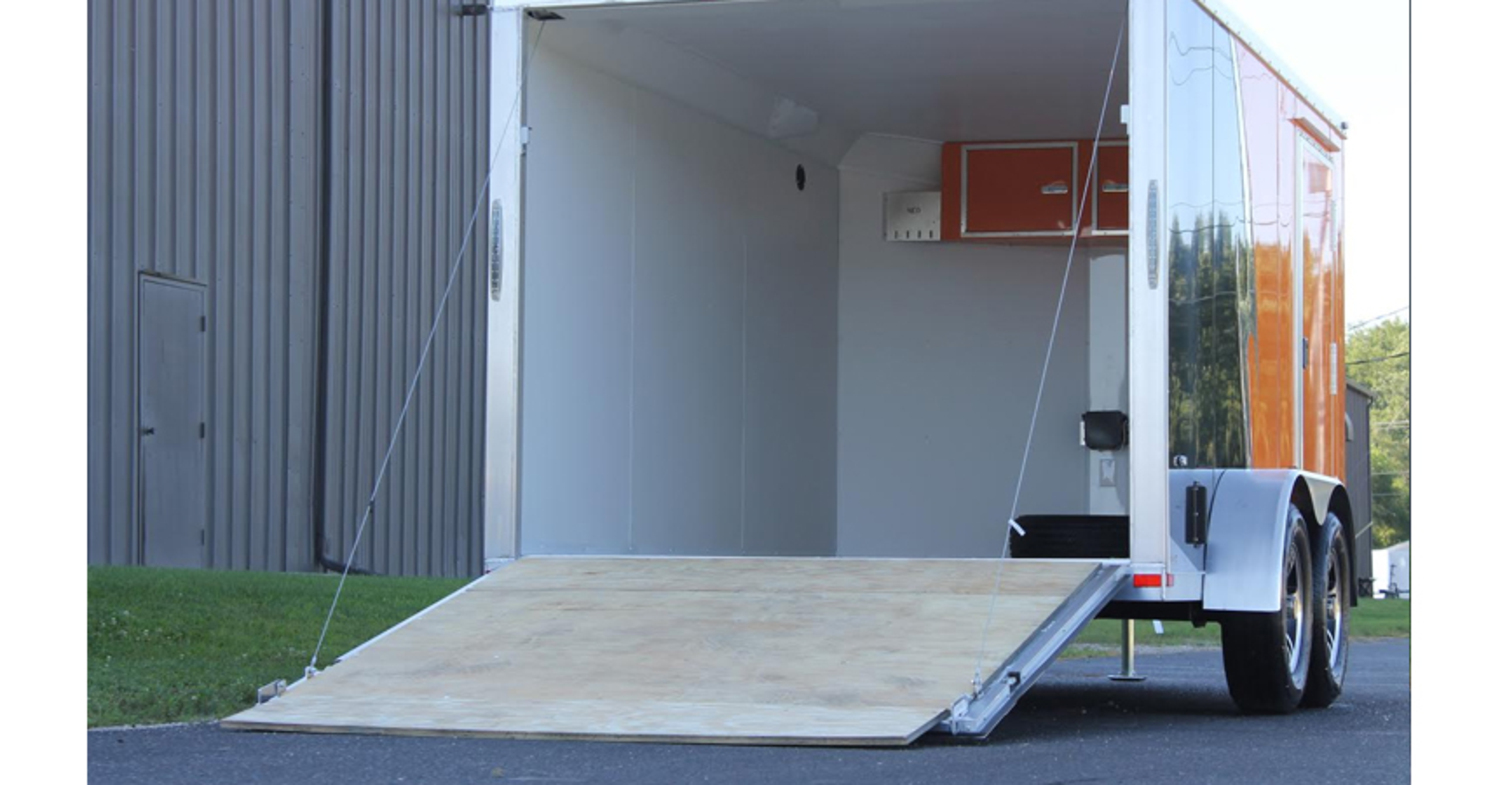

Ramp
Ramp Door Liner
Ramp Door Transition Flap
Rear Door
Rims
Roof Vents
Spare Tire Choice
Stabilizers for Ramp
Vents

*Custom colors, other than black, may incur additional production time and costs. The colors displayed below are for representation purposes and may not accurately reflect the actual color on your trailer.
